Quick Details

  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Colour Depth: 36 Bit
  • Interface Type: PS/2, USB, Bluetooth
  • Max Paper Size: 600*600mm
  • Optical Resolution: 5mil
  • Scan Speed: 100 Scans/sec
  • Brand Name: Postech
  • Model Number: HS02
  • Place of Origin: Guangdong, China (Mainland)
  • Color: Grey
  • Weight (w/o cable): 160G
  • Power Supplies: for applications that do not supply power over the host cable
  • Barcode type: Both 1D and 2D
  • Environmental: Compliant with RoHS directive 2002/95/EEC
  • Drop Spec: Withstands multiple 6 ft. drops to concrete
  • Humidity: 5% to 95%, non-condensing
  • Immunity: Immune to sunlight up to 86,000 Lux.
  • Advantage: handheld barcode scanner for warehouse
  • Feature: auto-scan barcode scanner

Packaging & Delivery

Packaging Details 1pcs into a retail box
Delivery Time Shipped in 1 days after payment
2016 Bluetooth 1d&2d auto-scan barcode scanner for supermarket

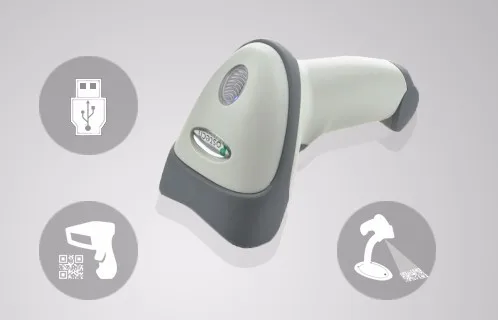

HS02 Handheld scanner designed independently by Postech, aimed at offering convenience to supermarket, clothing store and store cash register. Which's simple to use and support wireless bluetooth and serial port connection as two optional modes. Its built-in high-speed qr code barcode scanning engine can scan 1d&2d barcodes

Support wireless bluetooth SPP/H-I-D Model, Support Android, IOS, Windows.

Its built-in high-speed qr code barcode scanning engine can scan 1d&2d barcodes.

Built-in 1000mah lithium battery in full power whose stand-by time can last for15 days and not only work continuosly for to 10 hours.

Not connecting with any devices, it also can store 6000 barcodes of 15 bytes

Three working mode

Built-in 1000mah lithium battery in full power whose stand-by time can last for15 days and not only work continuosly for to 10 hours.

Not connecting with any devices, it also can store 6000 barcodes of 15 bytes

Not connecting with any devices, it also can store 6000 barcodes of 15 bytes

Basic Characteristics
Dimensions 168mm×80mm×68mm(LxHxD) Weight 150g
Voltage and Current 5 VDC +/-10% @ 400 mA OS IOS, Android, Windows, Mac
Data storage 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Communication Class 3 Bluetooth Human Interface Device, SPP with 20M distance, USB, USB virtual serial port(optional), RS232(Optional)
Working mode Bluetooth mode, USB mode, offline mode(optional)
Scan mode Good-read off, Momentary, Alternate, Continuous, Host
Battery power Internal Battery: Changeable 1000mAh Li-ion Battery, Standby 15 days, working time after full charge with good decode as 12hours. Charge time: About 3hours
Performance Characteristics
Sensor Type CMOS Scanner Rate 100 times
CPU 32bit ARM CPU Image (Pixels) 640 pixels (H)x 480 pixels (V)
Light Source Aiming: 617 nm LED; illumination: 6500K LED
Field of View 40° (H) x 26° (V) Roll / Pitch / Yaw: 360°, ±65°, ±60°
Print Contrast 25% minimum reflective difference
Symbology Decode Capability
1D UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of5, ISBT Concat
2D PDF417, Composite Codes,Data Matrix, Maxicode, QR
Motion Tolerances up to 25 in. (63.5 cm) per second
Interfaces Supported USB
Light Source Aiming: 617 nm LED; illumination: 6500K LED
User Environment
Operating Temperature 32° to 122° F / 0° to 50° C Storage Temperature -40° to 158° F / -40° to 70° C
Humidity 5% to 95%, non-condensing Minimum resolution ≥5mil
Drop/Shock Specifications 1.5M 200times drop test
Ambient Light Immunity Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux
Certificate CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times).
Laser safety IEC60825-1-2007, Class 1
Accessories USB cable, Bracket(optional),Bluetooth adapter(optional), mobile phone's holder(optional)
Shenzhen Unique Electronic Limited was founded in 2011. Utechasia is one of the stores. Our company is one of the leading manufacturers of POS devices, peripherals and accessories. Our company offers barcode scanners, cash drawers, receipt printers, magnetic card readers and writers, customer pole displays and LCD touch monitors. Our products are used in the applications of POS, medical, industrialautomation, etc.

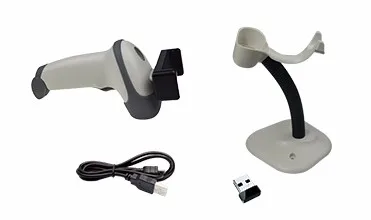

1. HS02 Handheld Barcode Scanner

2. USB cable, Bracket(optional)

3. Bluetooth adapter(optional)

4. mobile phone's holder(optional)

5. Hands free holder(optional)

6. User's manual


2 Years of quality warranty, Postech will undertake round shipping charges if any faulty rates.

1. 2 years quality guarantee (all items will be checked 200% before shipping)

2. Professional R&D department to provide the technical support Professional R&D department to provide the technical support

3. OEM is accepted according to customer's requirement

4. Excellent service of the express which can make you receive the goods easily

5. After-sale service: We will undertake shipping charges if items caused by quality problem



Q1. What's your main products ?

- Laser Barcode Scanner - Image Barcode Scanner - Thermal Receipt Printer

- Dot -matrix Receipt Printer - Bluetooth Printer - Cash Register Drawer

Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .

Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;

Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .

Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name

- Color & Interface

- Quantity of order
- Market of country If possible, let us know if you have any experience on barcode scanners business

Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.

Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.

Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;


Welcome to inquire!
