Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Unique
  • Model Number: MS8100
  • Color: Black
  • Weight: 170g
  • Sensor Type: CMOS
  • Decode Capabilities: All of teh 1D bar-code and QR

Packaging & Delivery

Packaging Details: 1 unit in a box, 10 boxes to a CTN
Delivery Detail: 1~3 working days

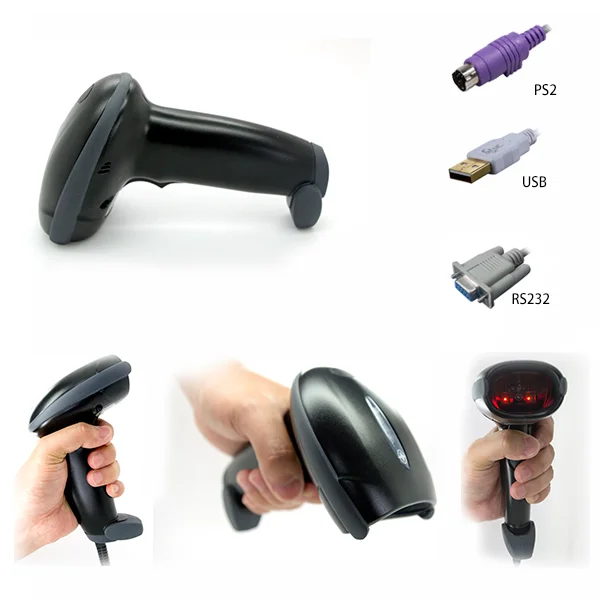

MS8100 series handheld area image barcode scanner




MS8100 series handheld area image barcode scanner is the first generation imager product designed by Postech corporation, it is designed with the most advanced hardware and software platform therefore it offers the industrial-leading scan performance and reliability. MS8100 series offers versatility of area-imaging technology to fulfill different industrial application demands; in category of different focal length it offers Standard Version, High Density Version, and DPM (direct part mark) Version. Standard Version is widely considered as best cost effective product, but it offers promoted poor barcode reading performance especially on bad printed bardcode or broken barcode (both 1d and 2d). High Density Version is capable to read to minimum 3 mil barcode and all above (both 1d and 2d), it offers wide range of scanning element and scanning capability. DPM Version offers ideal solution forreading DPM codes (etching by laser) on various materials, for instance PCB-boards, resin products, and metal. MS8100 has very compact but ergonomic design, from where it is designed with high quality standard and performance to be widely used in versatility industrial applications including Auto motor, Medical industry, Logistical, Quality tracking and so on.

Fetures
  • Omni directional scanning capability: No need to adjust barcode
  • Promoted image processing: High quality image
  • Multiple Focal Options: Three product versions (Standard, HD and DPM), leading to improved productivity
  • Multi-interface: auto interface detection
  • Support mobile screen reading: capable to read coupons on mobile phone
  • Medical standard material: anti- bacteria material
  • High IP rating: IP43
  • High Drop performance: 6 inches


Specification



Physical Characteristics
Dimensions16.8 cm H x 10.2cm L x 7.1 cm W
Weight170g
Power5 VDC ± 10% @ 450 mA
Power SuppliesPower supplies are available for applications that
do not supply power over the host cable
Operating Temp0° C to 40° C
Storage Temp-40° C to 70° C
Humidity5% to 95%, non-condensing
Drop SpecWithstands multiple 6 ft. drops to concrete





Symbology Decode Capability
Motion TolerancesUp to 25 in. / 63.5 cm per second
Interfaces SupportedUSB: Human Interface Device Keyboard (default mode),COM Port Emulation
Standard
Minimum Resolution-SR: Code 39 4.8mil; UPC 60% 5 mil; PDF417 5 mil,1:1048576Datamatrix 7.5 mil
-HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil,Datamatrix 4.8 mil
1DUPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code
128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2DPDF417, MicroPDF417, Composite Codes, TLC-39,
Data Matrix, Maxicode, QR Code, MicroQR, Aztec





Decode Ranges
Typical Performance*Typical Working Ranges
HD Focus RangeSR Focus RangeER Focus Range
Bar Code TypeSymbol DensityNearFarNearFarNearFar
Code 395.0 mil5mm90mm30mm120mm80mm180mm
100% UPCA13.0 mil8mm200mm15mm350mm10mm480mm
Code 3920.0 mil8mm250mm15mm350mm20mm550mm
PDF 4176.8 mil5mm95mm10 mm150mm70mm220mm
Data Matrix10.0 mil5mm110mm10mm180mm65mm260mm
QR Code20.0 mil10mm150mm10mm350mm20mm450mm
Resolution 1D Code 392.8 mil (0.071mm)4.8 mil (0.122mm)4.8mil (0.122mm)
Resolution 2D Data Matrix4.8 mil (0.122mm)6.6 mil (0.168mm)7.5mil (0.191mm)
*Performance may be impacted by bar code quality and environmental conditions

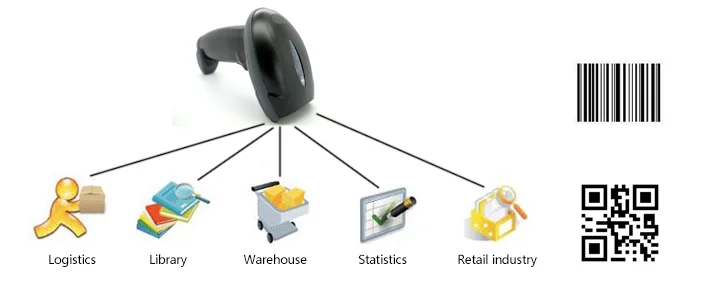

Application




Warranty
  Service   Packaging
  • Handheld Scanner is guaranteed for 2 year
  • The existence of quality, a replacement freight from our full commitment
  • User's manual x1
  • Handheld barcode scanner x1
